socket weld fitting

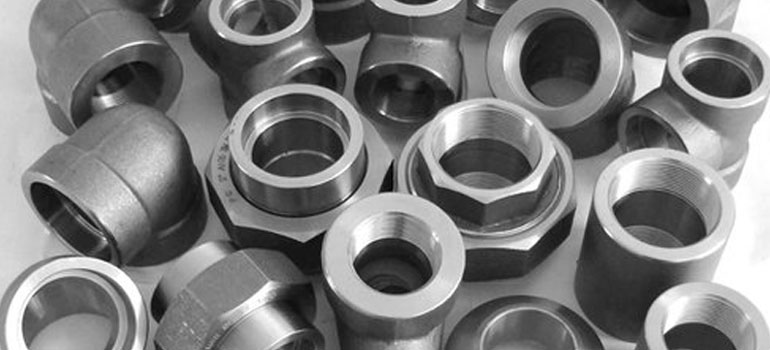

Dilip Tube one of the prominent manufacturer, exporter and supplier of forged socket weld fittings manufactured
in accordance to ASME B16.11. Forged socket weld fittings are available ex-stock in all major
stainless steel grades (ASTM A182 F316L, F304L), carbon steel and alloy steel grades. We offer various
types of socket weld fittings including socket weld elbow, socket weld tees, socket weld cross, and more.
Socket weld fittings are widely used in piping systems across major industries such as petrochemicals, power
generation, ship building, diary industry, breweries, waste water treatment, chemical, pharmaceuticals and
others.
Socket weld fittings are available in pressure ratings of class 3000, 6000 and 9000. We are constantly adding to our diverse product range in order to better serve our valued customers.
High Pressure Socket Weld Forged Fittings
| Pressure Class | 3000LBS, 6000LBS, 9000LBS |
| Products | Elbow 90 Degree, Elbow 45 Degree, Tee, Cross, Union, Coupling, Half Coupling, Cap, Boss, Outlet, Welding Outlet, Insert |
| Dimension Specifications | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8″~4″ (DN6~DN100) |
Forged Pipe Fittings Manufacturing Standards
| ASTM A182 – ASME SA182 | Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
| ASME B16.9 | Factory-Made Wrought Buttwelding Fittings |
| ASME B16.11 | Forged Fittings, Socket – Welding and Threaded |
| MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
